Specialty Wire Drawing Dies

Shaped Diamond Wire Drawing Dies

Product Name PCD Shaped Dies; Diamond Shaped Dies; PCD Shaped Drawing Dies; PCD Shaped Wire Dies; Shaped Diamond Wire Drawing Dies
Hole Sizes The minimum square hole is 0.18x0.18mm,the flat square hole is 0.08 × 0.20 mm,the semicircular line eye is 0.20 × 0.40mm,the triangle line eye is 0.25x0.25mm,the sharp angle can reach 0.01mm,the tolerance is about ± 0.001mm,and other specifications and shapes can be customized according to customer requirements.
Applications copper wire such as flat wire,decorative products,such as copper wire used in automobile alternator.
Advantages Diamond Shaped Dies can produce square,flat square, triangle,hexagon,octagonal,semicircle,ellipse,fan,Z-shaped,tile shaped and other special-shaped drawing dies.

Polycrystalline Diamond Wire Drawing Dies

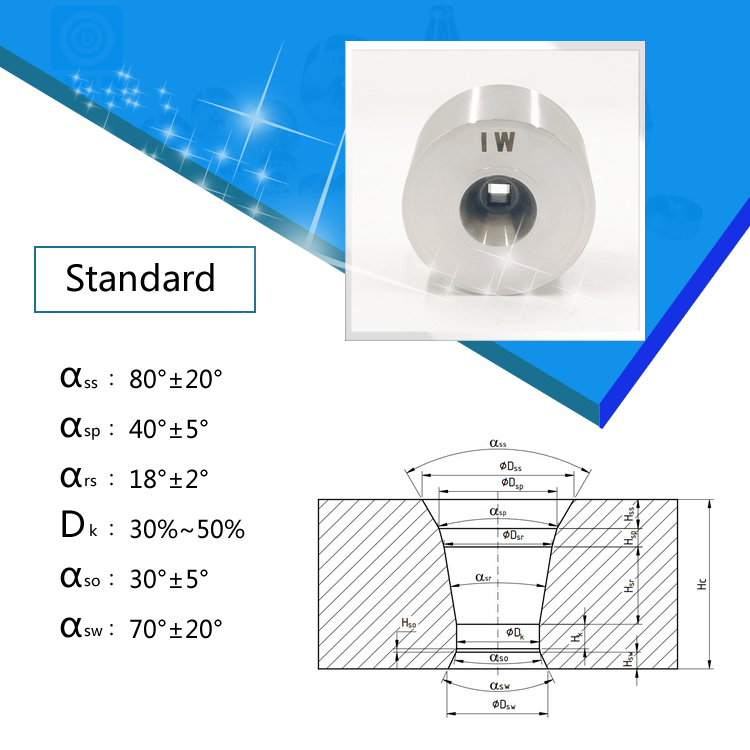

α(ss)Entrance The inlet area is polished so that the drawing fluid can circulate smoothly
α(sp)Approach The lubrication area is finely polished, so that the wire can be easily excessive
α(rs)Reduction The working area can reduce the drawing force, and the change-point contact is face-to-face angle drawing, which reduces friction and die wear. The deformed structure is more reasonable and stable. The upper line can be drawn smoothly when the incoming line becomes thicker or thinner.
d(k)Bearing The fixed warp area can ensure the precise diameter, smoothness and out-of-roundness of the wire for a long time.
α(so)Back Relief The safety angle can ensure that the wire is drawn without scratches, and the life expectancy tends to be longer.
α(sw)Exit The deepening of the outlet can greatly support the tensile stress of the outlet.

Wire drawing is done by passing the metal wire through the hole of the Wire Drawing Die, and applying a pulling force to the wire at the exit side of the die. The wire is contracted and squeezed in the die cavity and gradually becomes thinner, and its speed increases near the exit of the die hole. Since the volume of the wire is constant, the decrease in cross section makes it stretched. In the center, there is a hole of a certain shape, such as round, square, octagonal or other special shapes. When the metal is pulled through the die hole, the size becomes smaller and even the shape changes.
The best material depends on the wire you draw and the quantity you draw. Contact us to help you choose the most economical solution and reduce the total cost of ownership of your drawing dies.

Tolerance
Diameter(inch)
Diameter(mm)
Tolerance(mm)
Roundness(mm)
≤0.00157
≤0.040
0.0003
0.0002
0.00158-0.00393
0.041-0.099
0.0005
0.0003
0.00394-0.01968
0.100-0.499
0.001
0.0005
0.01969-0.03936
0.500-0.999
0.0015
0.0008
0.03937-0.05905
1.000-1.499
0.002
0.001
0.05906-0.08661
1.500-2.199
0.003
0.0015
0.08662-0.12992
2.200-3.299
0.004
0.002
0.12993-0.18110
3.300-4.599
0.005
0.0025
0.18111-0.22834
4.600-5.799
0.006
0.003
0.22835-0.29921
5.800-7.599
0.007
0.0035
0.18111-0.41338
4.600-10.499
0.008
0.004

PCD Dies with IWD PCD Blanks
inches
mm
ADDMA
IWD
Maximum Diameter
0.0039-0.0157
0.100-0.400
D6
IWD3210
0.4
0.0079-0.0315
0.200-0.800
D12
IWD3215
0.8
0.0079-0.0394
0.200-1.000
D12
IWD4215
1.0
0.0197-0.0591
0.500-1.500
D15
IWD5225
1.5
0.0197-0.0591
0.500-1.500
D15
IWD4223
1.5
0.0315-0.0787
0.800-2.000
D18
IWD5235
2.0
0.0315-0.0787
0.800-2.000
D18
IWD4229
2.0
0.0472-0.1181
1.200-3.100
D21
IWD7240
3.1
0.0472-0.1181
1.200-3.100
D21
IWD6838
3.1
0.0591-0.1732
1.500-4.400
D24
IWD9553
4.4
0.0591-0.1732
2.000-4.400
D24
IWD6853
4.4
0.1299-0.2126
3.300-5.400
D27
IWD1285
5.4
0.1299-0.2183
3.300-5.800
D27
IWD12987
5.8
0.2008-0.2992
5.100-7.600
D30
IWD12912
7.6
0.3150-0.4331
8.000-11.000
D33
IWD15215
11.0
0.3150-0.4409
8.000-11.200
D30
IWD18213
11.2
0.3150-0.4724
8.000-12.000
D33
IWD18215
12.0
0.3150-0.4921
8.000-12.500
D33
IWD18217
12.5
0.3150-0.5000
8.000-12.700
D36
IWD18218
12.7
The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.

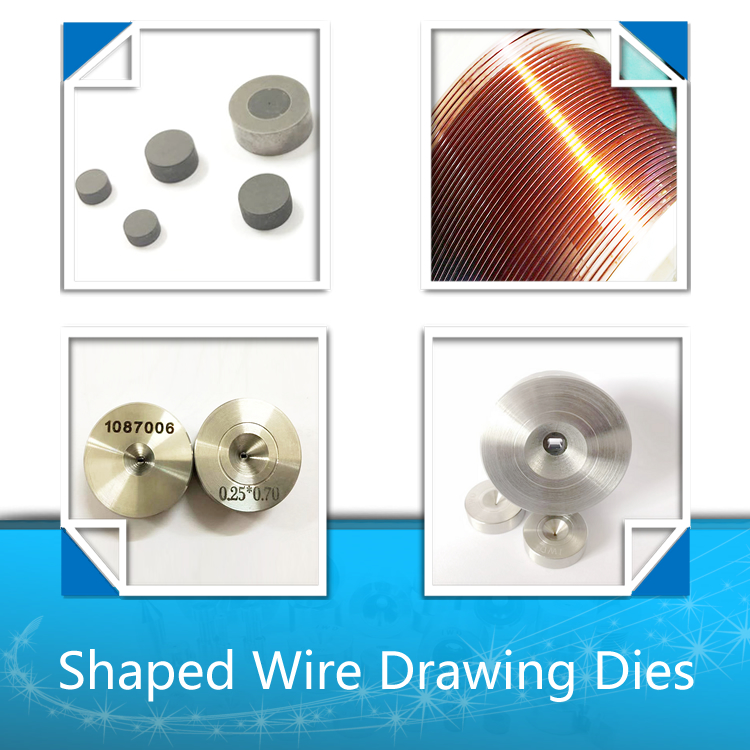

PCD Shaped Wire Drawing Dies

Customized Design And Processing PCD Shaped Wire Drawing Die,Copper Wire Drawing Polycrystalline Diamond Shaped Wire Drawing Dies

The polycrystalline profiled wire drawing die is made of high quality die core,which has the advantages of uniform texture, strong wear resistance,high finish,high precision and long service life.
The surface finish and accuracy of wire rod can be ensured in the long-time drawing process.
The profiled die is used by drawing and extruding the material under pressure through the die head.
They accurately produce products of various shapes,such as connecting flat cables,to meet the diverse needs of customers.

The wire drawing die is a very important and consumable product used by various metal wire manufacturers to draw wires. The application range of wire drawing dies is very wide, mainly used for drawing straight and difficult-to-machine objects such as bars, wires, wires, pipes, etc., and generally suitable for drawing processing operations of metal and alloy materials such as steel, copper, tungsten, molybdenum, etc. . Since the cost of the wire drawing die can reach more than half of the wire drawing cost, how to reduce the consumption cost of the wire drawing die and increase its service life is the primary problem that metal wire production units urgently need to solve.
Wire Drawing Dies have a wide range of uses, such as: high-precision wires used in electronic devices, radars, televisions, instruments and aerospace, as well as commonly used tungsten wires, molybdenum wires, stainless steel wires, wire and cable wires and various alloy wires, all of which are made of diamond It is drawn by a wire drawing die. Due to the use of natural diamond as the raw material, the diamond wire drawing die has strong wear resistance and extremely long service life.
